ELITE SCREENS + SYSTEMS
Cinebox Elite A/V System 40'
سعر القائمة$44,399
اطلب عرض سعر
أخبرنا بالموقع وعدد الجمهور وسنرسل إليك عرض سعر مكتوبًا — يشمل الشحن ومدة التوريد وأي ملحقات تحتاج إليها.
إرسال طلب عرض سعرأو اتصل بـ (866) 329-3180 · استخدم نموذج طلب عرض السعر
- العلامة التجارية — Open Air Cinema
- المجموعة — Outdoor Cinema Screens and Systems
الوصف أدناه مقدَّم باللغة الإنجليزية.
Description
The CineBox Elite A/V System 40' is our flagship large-venue outdoor cinema: the Elite screen with a complete professional projection, sound, and media package for audiences in the thousands.
Every Elite system is pre-wired, road-ready, and backed by on-site training so your team is confident from the first show.
Key specs
| Screen size | 40' x 22' (16:9 widescreen) |
| Diagonal | 46' |
| Projection surface | 900 sq ft, front and rear |
| Audience (grass / chairs / standing) | 3,000 / 6,000 / 18,000 |
| Drive-in capacity | ~300 cars |
| Screen weight | 550 lbs |
| Setup crew | 4 people |
| Wind rating | 20 mph (35 mph structural limit) |
| Warranty | 5-year frame, 3-year surface and console |
What's included
Screen and inflation
- One Elite 40' x 22' heavy-duty inflatable screen, NFPA 701 fire-compliant vinyl, front and rear projection with a removable theatrical-grade surface
- Two air blowers with two sound-dampening boxes
- Eight high-tension tethers with 36-inch rust-proof steel stakes and an 8-pound sledgehammer
- One heavy-duty transport cover with handles and cinch straps
- One ground cover with cinch strap
- One screen repair kit
Video and projection

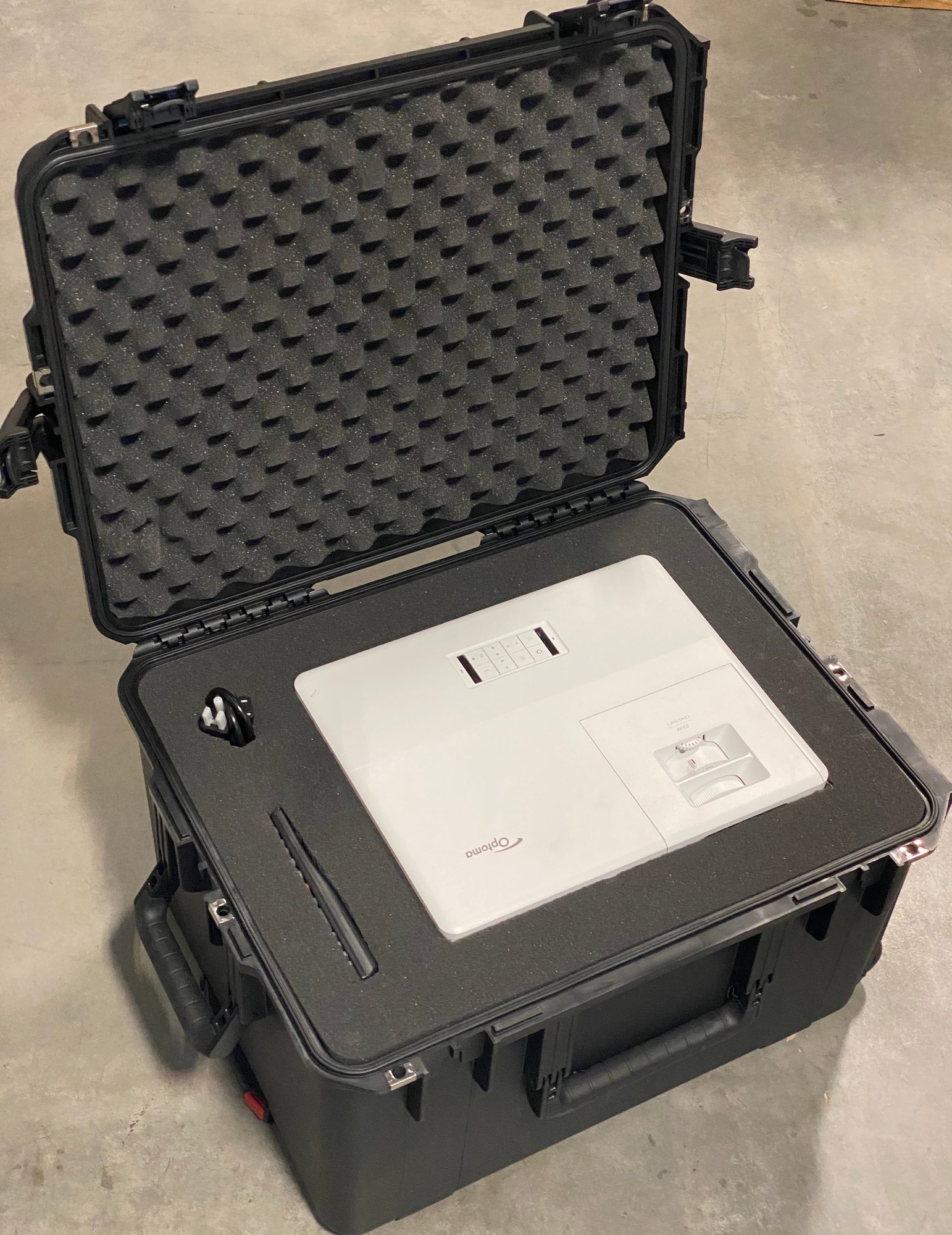

- One Laser-LED projector, 9,000 lumens, upgradeable, with a hard-shell waterproof padded travel case
- Four Rubbermaid outdoor grass-friendly rolling carts with lockable wheels

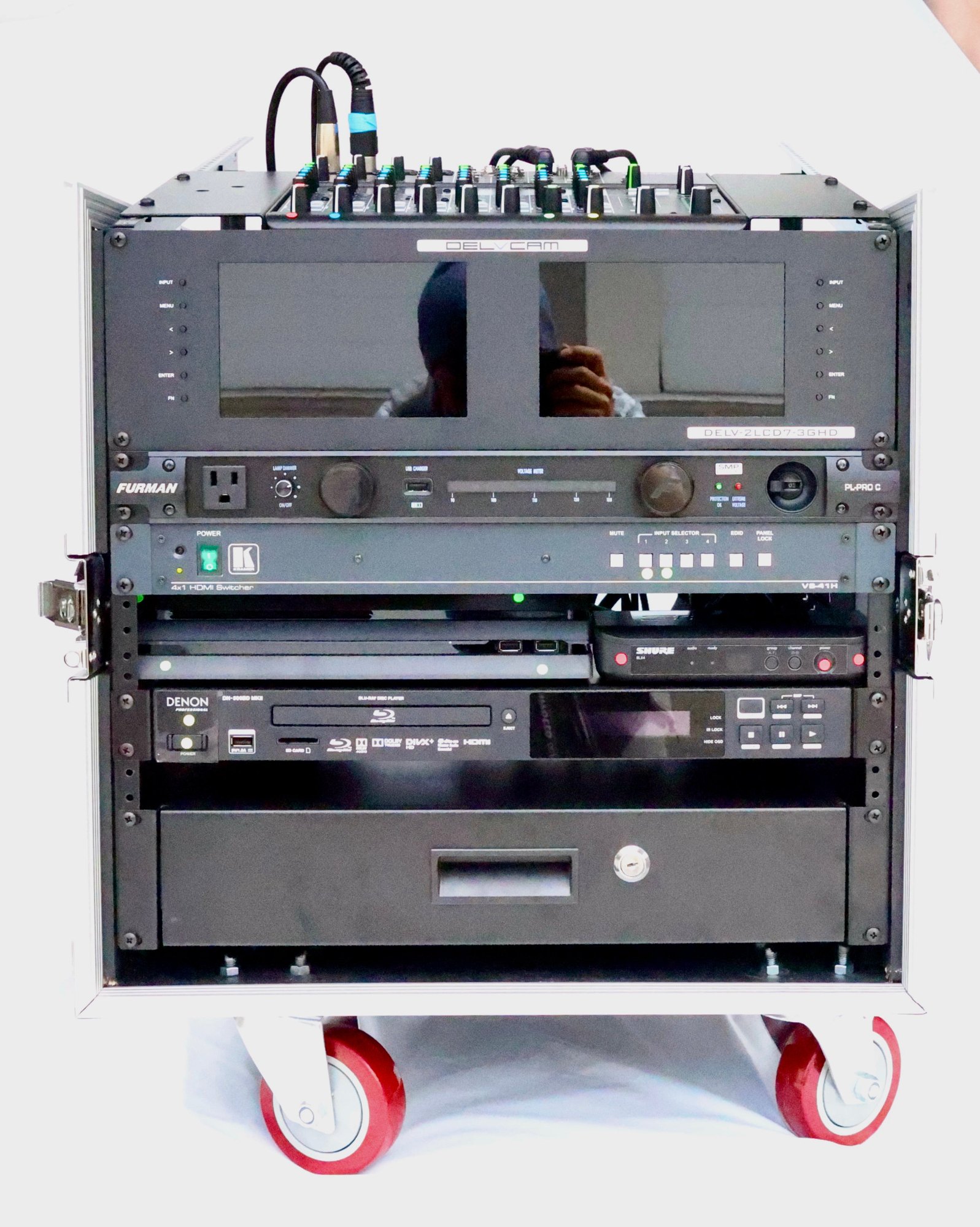

- One CineBox Elite road-ready ATA rack case with storage drawer and laptop drawer
- One MacBook Pro M5 laptop
- Two professional rack-mount Blu-ray players with XLR outputs and screen lock, plus an external USB-C Blu-ray and an Amazon Firestick with one-year access
- One advanced HDMI 2.1 seamless video switcher
- One rack-mounted 3-screen 1080p LED preview panel
Audio and sound
- Six Mackie or JBL 2,000-watt powered speakers with Bluetooth input

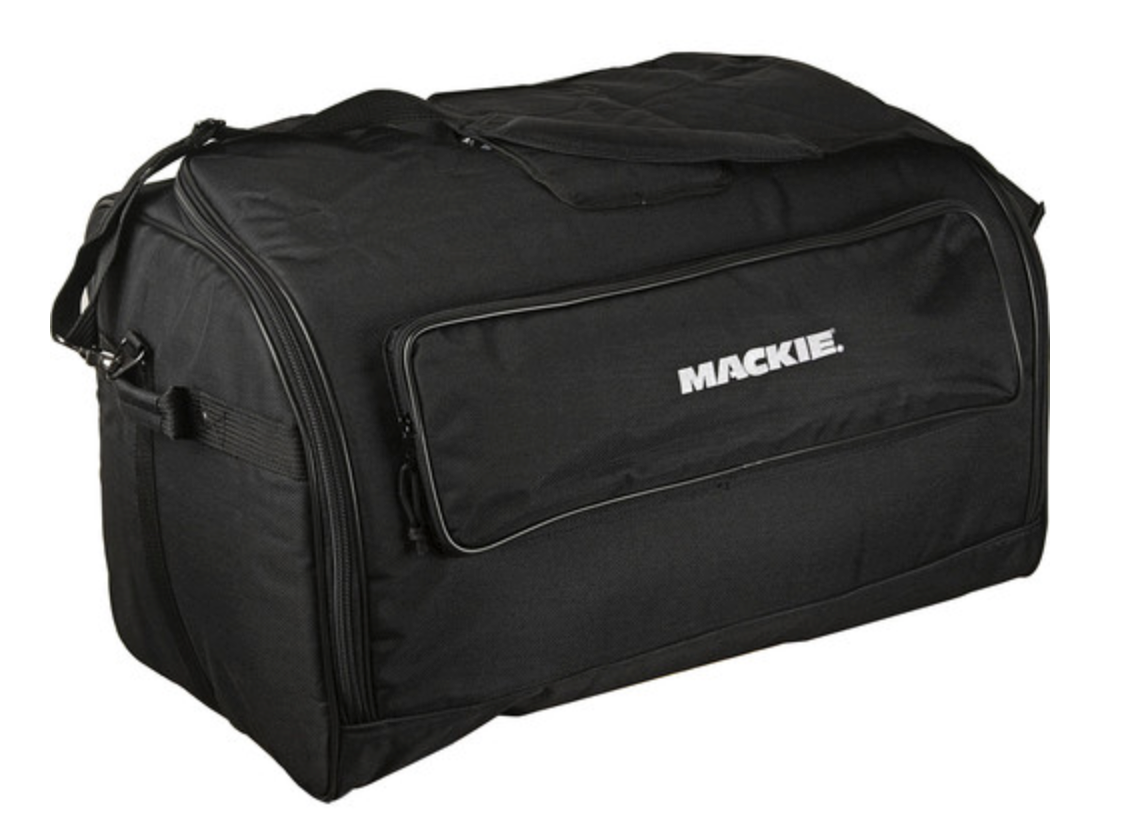

- Professional speaker stands with bags
- One 12-channel professional audio mixer, plus USB-C Focusrite digital mixing
- A Shure wired and wireless microphone system
- Fourteen XLR cables: twelve 50-foot and two 25-foot
Power, control, and connectivity
- One power conditioner with rack lighting, voltage indicator, and voltage regulator
- All HDMI cables pre-connected in the rack
- Adapter set: RCA, 3.5mm, USB-C to HDMI, iPhone Lightning to HDMI, aux, and two 10-foot HDMI 2.1 cables
- Extension cords: four 100-foot, eight 50-foot, and four 25-foot, triple-input and black
- Five LED projectionist headlamps
- One Honda Whisperwatt generator
- One heavy-duty grass-friendly screen cart that fits through standard doors
Documentation and support
- Printed and online manuals, sunset start-time guide, and projector distance guide
- Phone and FaceTime support, with on-site training available
Downloads
