Screens by size
Nine sizes, from 12' (3.66 m) to 40' (12.19 m). Every one is the projection surface, shown against a person.
- Browse by size
- by audience
- by lineup
- by price
All sizes on this page are the projection surface. The inflated frame is larger; where the Master Spec Sheet publishes overall frame dimensions they are shown on the size's own page.
Standard — 3 sizes
Standard series — lightweight, one-person setup, heavy-duty nylon construction
Standard 12' (3.66 m) — up to 175 seated viewers
- 84 sq ft surface
- 7.80 m²
- 14 lbs
- 20 mph wind rating
kit $1,499 · system $6,599
Standard 16' (4.88 m) — up to 400 seated viewers
- 144 sq ft surface
- 13.40 m²
- 25 lbs
- 20 mph wind rating
kit $1,999 · system $8,999
Standard 20' (6.10 m) — up to 1,000 seated viewers
- 220 sq ft surface
- 20.40 m²
- 45.5 lbs
- 20 mph wind rating
kit $3,199 · system $11,499
Event Pro — 3 sizes
Event Pro series — free-standing A-frame, front and rear projection, professional grade
Event Pro 12' (3.66 m) — up to 175 seated viewers
- 84 sq ft surface
- 7.80 m²
- 80 lbs
- 25 mph wind rating
kit $3,999 · system $14,999
Event Pro 16' (4.88 m) — up to 400 seated viewers
- 144 sq ft surface
- 13.40 m²
- 95 lbs
- 25 mph wind rating
kit $4,499 · system $17,499
Event Pro 20' (6.10 m) — up to 1,000 seated viewers
- 220 sq ft surface
- 20.40 m²
- 140 lbs
- 25 mph wind rating
kit $5,999 · system $19,499
Elite — 3 sizes
Elite series — heavy-duty vinyl, NFPA 701 fire compliant, largest venues

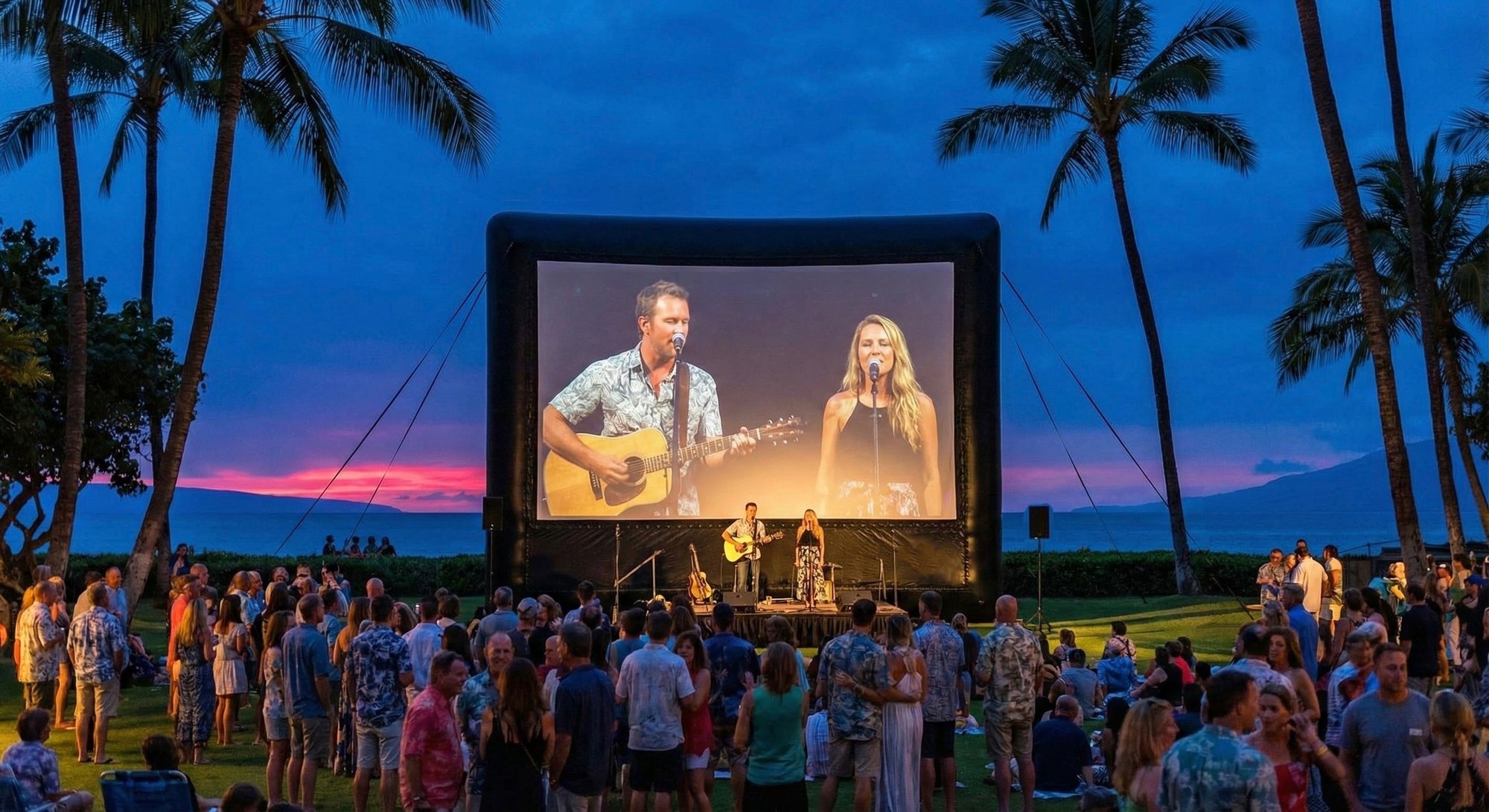

Elite 25' (7.62 m) — up to 2,000 seated viewers
- 350 sq ft surface
- 32.50 m²
- 298 lbs
- 20 mph wind rating
- drive-in ~100 cars
kit $13,500 · system $29,999
Elite 30' (9.14 m) — up to 3,000 seated viewers
- 510 sq ft surface
- 47.40 m²
- 342 lbs
- 20 mph wind rating
- drive-in ~150 cars
kit $15,500 · system $34,999
Elite 40' (12.19 m) — up to 6,000 seated viewers
- 900 sq ft surface
- 83.60 m²
- 550 lbs
- 20 mph wind rating
- drive-in ~300 cars
kit $18,000 · system $44,399
Every published size
| Screen | Width | Height | Seated viewers | Screen kit | CineBox system |
|---|---|---|---|---|---|
| Standard 12' | 12' (3.66 m) | 7' (2.13 m) | 175 | $1,499 | $6,599 |
| Standard 16' | 16' (4.88 m) | 9' (2.74 m) | 400 | $1,999 | $8,999 |
| Standard 20' | 20' (6.10 m) | 11' (3.35 m) | 1,000 | $3,199 | $11,499 |
| Event Pro 12' | 12' (3.66 m) | 7' (2.13 m) | 175 | $3,999 | $14,999 |
| Event Pro 16' | 16' (4.88 m) | 9' (2.74 m) | 400 | $4,499 | $17,499 |
| Event Pro 20' | 20' (6.10 m) | 11' (3.35 m) | 1,000 | $5,999 | $19,499 |
| Elite 25' | 25' (7.62 m) | 14' (4.27 m) | 2,000 | $13,500 | $29,999 |
| Elite 30' | 30' (9.14 m) | 17' (5.18 m) | 3,000 | $15,500 | $34,999 |
| Elite 40' | 40' (12.19 m) | 22' (6.71 m) | 6,000 | $18,000 | $44,399 |
List price, before applicable taxes. Shipping is free unless your quote specifies otherwise.
Nine sizes are published, from 12 feet to 40 feet. Anything outside that — a custom configuration, a multi-screen build, a different projection surface — is quoted. Contact us for volume pricing, municipal purchase orders, and multi-system packages.
Tell us about your event.
Screen size, audience, venue, budget — send us the details and we’ll put together a quote. Purchase orders, W-9s and government terms are routine here.
